AJAX SURVEILLANCE NVR PSU 12V
Product Thumbnail

AJAX SURVEILLANCE NVR PSU 12V

€50.00

Type: BareVoltage: 12VAmpers: 2A

Add To Wishlist Add To Compare

Product Details

  • SKU : 30242
  • Stock : Available

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

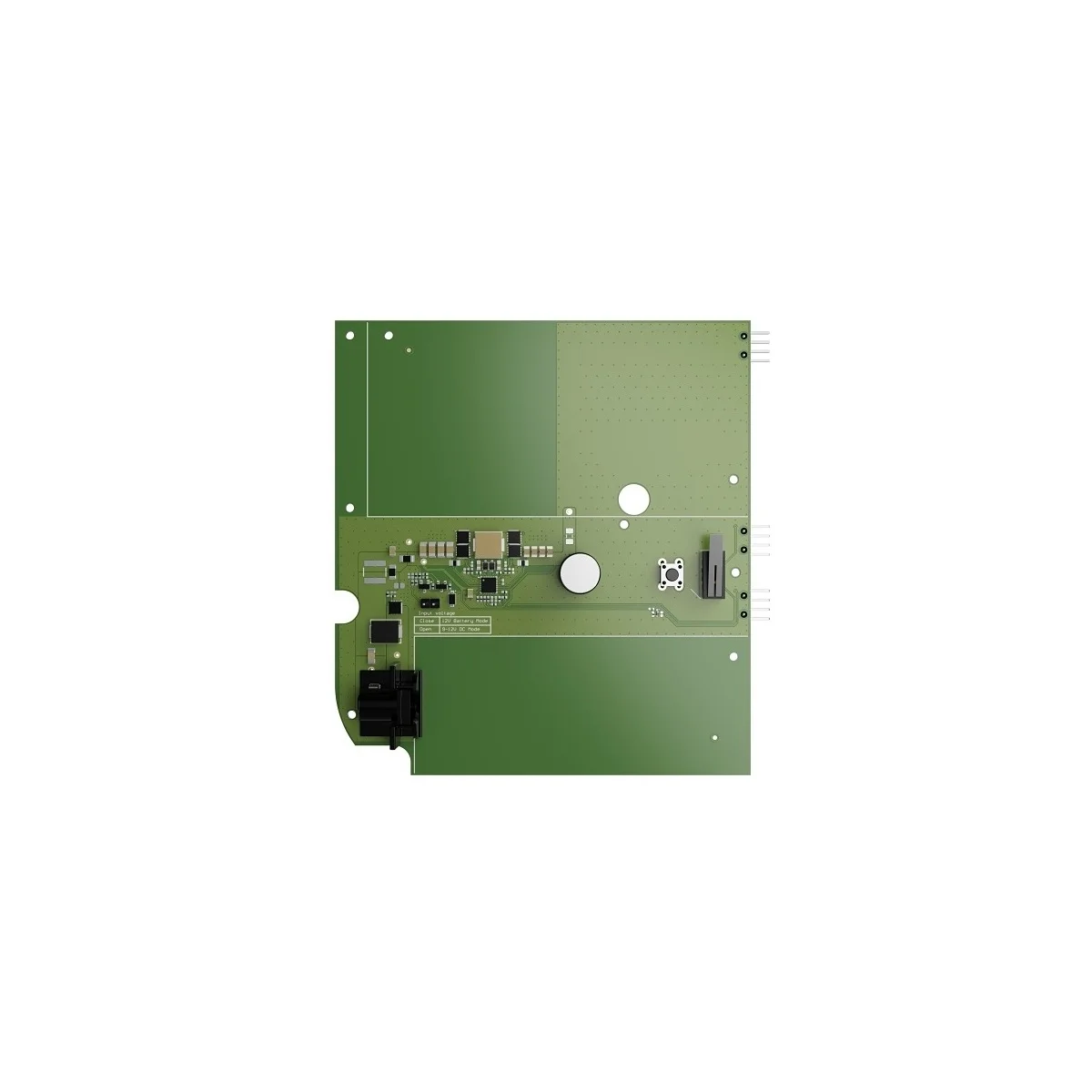

12V PSU for NVR is an electronic board that replaces the standard 110/230 V~ power supply unit within the video recorder enclosure. With the alternative PSU, an Ajax NVR can operate on a low-voltage power source instead of the facility’s power grid. This setup ensures continuous video recording, making it ideal for property with unstable or no power supply.

Operating Voltage Range
  • • 8–16V and with installed jumper: 12.1–16V
  • • Up to 4A (when output maximum is 2A
Turn-On Threshold Voltage
  • • 8V (default) and 12.1V (with installed jumper)
Operating Temperature Range
  • • 32 °F to 104 °F
Operating Humidity
  • • Up to 75%
  • • IP20
Turn-Off Threshold Voltage
  • • 6.5V (default) and 10.35V (with installed jumper)
Output Nominal Voltage
  • • 12V
Cable Cross-Section
  • • 12–14AWG
Output Maximum
  • • 2A
