Name: Citronic Pl... | Spark Electronics Cyprus | Power Amplifiers
Brand: Spark Cyprus
SKU: 28041
Price: 667 EUR
Availability: InStock

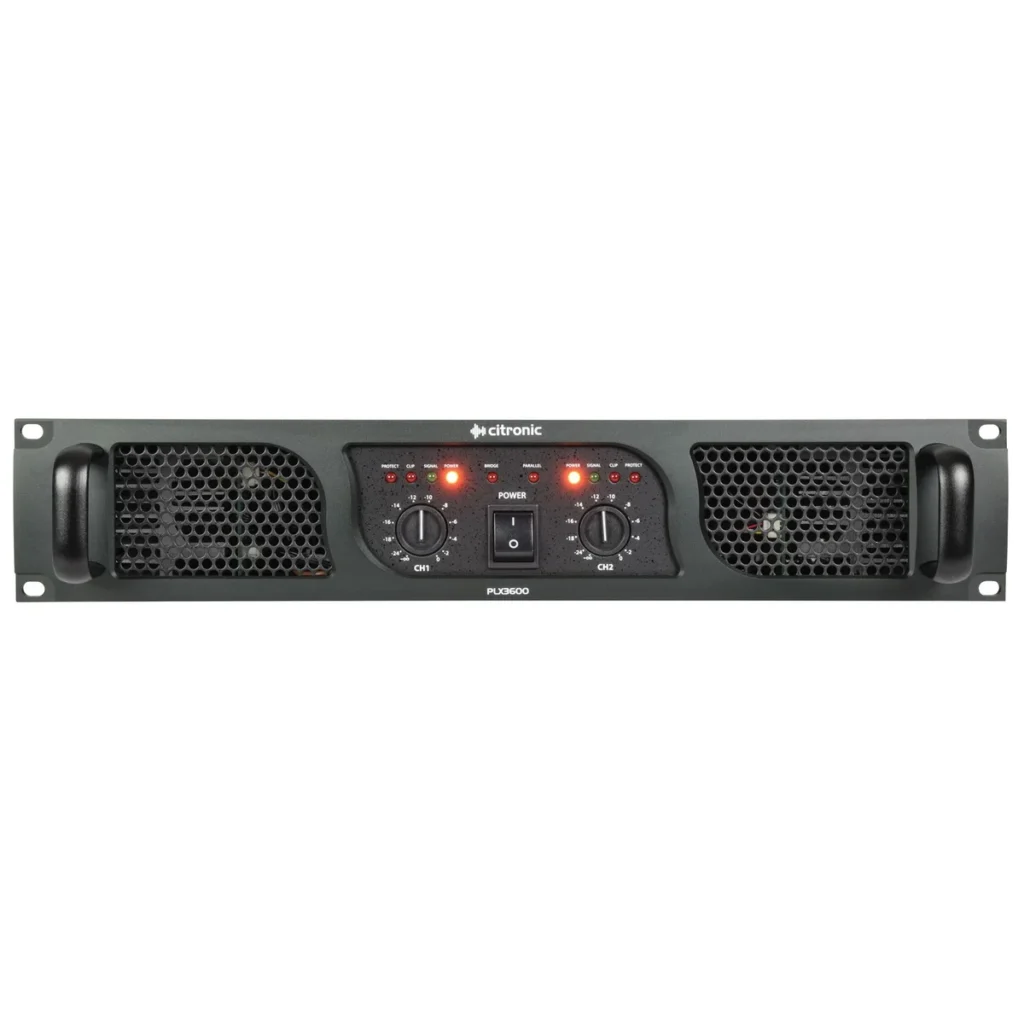

Citronic PLX3600 Power Amplifier 2x1800W/2ohm 172.218UK

€667.00

Channels: DualPower (8ohm): 2 x 800W RMSPower (4ohm): 2 x 1350W RMSPower (2ohm): 2 x 1800W RMSAmplifier Class: Class H2ohm Stable: YesBridge Mode: YesWarranty: 3 Years

Add To Wishlist Add To Compare

Product Details

SKU : 28041
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

19″ rackmount 2U power amplifier with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.Bridge mode for high power mono operationOutput stable down to 2 OhmsSwitchable clip limiter

Power rms bridge @ 8 Ohms	• 2300W
Power rms bridge @ 4 Ohms	• 2900W
Power rms @ 8 Ohms	• 2 x 800W
Power rms @ 4 Ohms	• 2 x 1350W
Power rms @ 2 Ohms	• 2 x 1800W
Amplifier	• construction : Class-H
Controls	• Level channel 1, level channel 2, ground, mode, clip limiter
Input impedance	• 20k ohms
Frequency response	• 5Hz - 50kHz
Total harmonic distortion	• 0.05%
Slew rate	• 40V/us
Damping factor	• >400
Protection	• Short-circuit, overload, D.C. and thermal protect
Fuse	• F15A (6 x 32mm)
Power supply	• 230Vac, 50Hz (IEC)
Dimensions	• 482 x 453 x 88mm (2U)
Weight	• 26kg
	• Bridge mode for high power mono operation
Output stable down to	• 2 Ohms
	• Switchable clip limiter

User Manual
