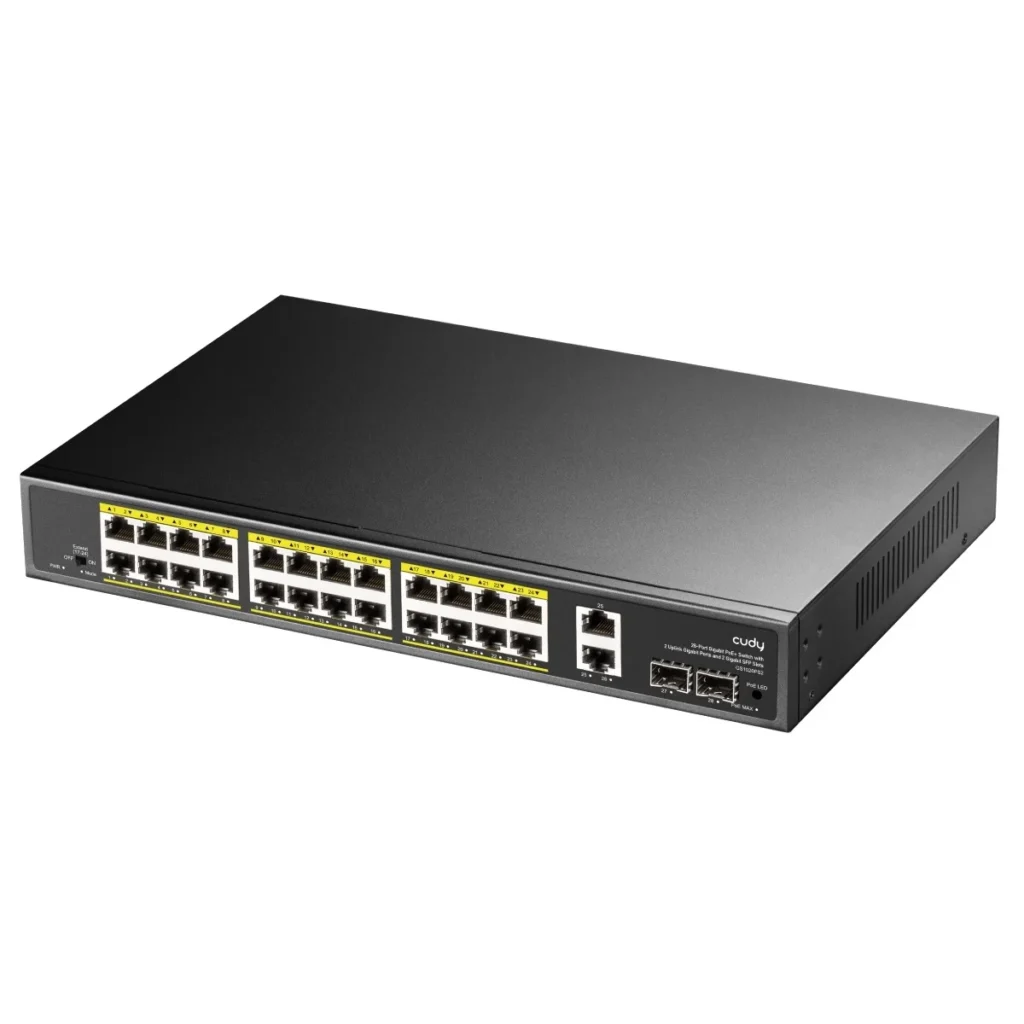

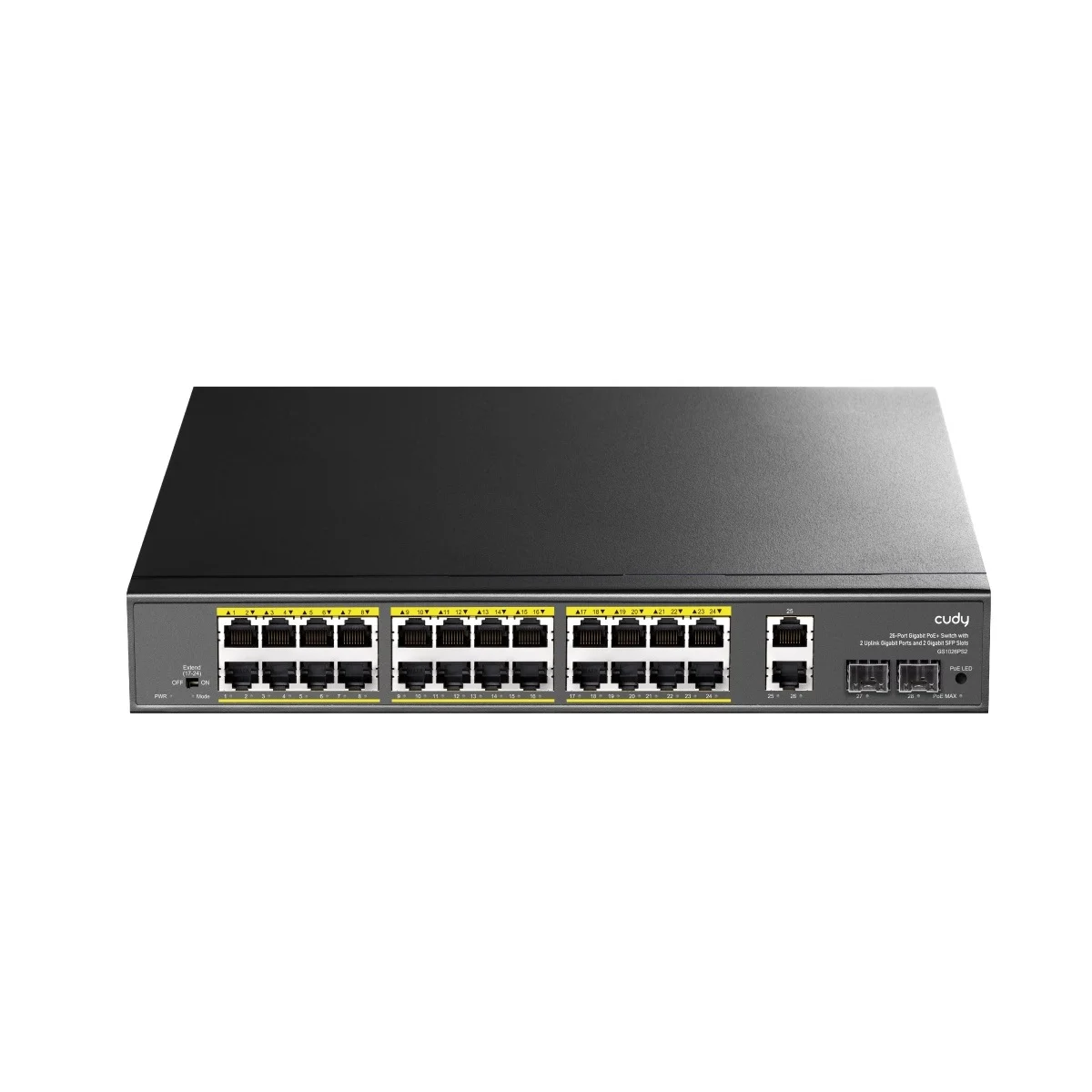

Cudy Switch PoE Gigabit 24PoE + 2GbE + 2SFP Uplink 300W R/M GS1026PS2

€218.00

Ethernet Speed: GigabitEthernet Ports: 24Poe Ports: 24Total PoE Power: 300WMax. Watt per Port: 30WType: UnmanagedHousing: MetalMounting: RackmountedPoE Type: 802.3af/atGigabit Uplink Ports: 2×RJ45+2×SFP

Add To Wishlist Add To Compare

Product Details

SKU : 25962
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance24× GbE PoE Ports, 802.3at / 802.3af (30W per port)Port 17-24 Supports CCTV Mode for max 250 meters transmission300-watt total power supplyWatchdog detects unresponsive PoE clients under VLAN modePoE Port Priority streamlines device power management

	• IEEE 802.3 (Ethernet)
	• IEEE 802.3u (Fast Ethernet)
	• IEEE 802.3ab (Gigabit Ethernet)
	• IEEE 802.3x (Flow Control)
	• IEEE 802.3z (Gigabit Ethernet Fiber Standard)
PoE Standard	• IEEE802.3af /IEEE802.3at
Max each port	• 15.4W ( IEEE 802.3af )
	• Max each port：30W ( IEEE 802.3at )
PoE compatibility	• IEEE 802.3af/at adaptive
PoE port output	• DC48-55V
Power Pin	• Power over spare pairs 1/2(+) , 3/6 (-)
10BASE-T	• Cat 5E UTP(≤250 meter)
100BASE-TX	• Cat5 or more UTP (≤100 meter)
1000BASE-TX	• Cat5 or more UTP (≤100 meter)
MultiMode Fiber	• 850nm, 1310nm, Transmission Distance: 550m/2Km
Single-Mode Fiber	• 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Bandwidth	• 56Gbps
MAC	• 8K
Packet Buffer Memory	• 3 Mbit
Packet Forwarding Rate	• 41.644 Mpps

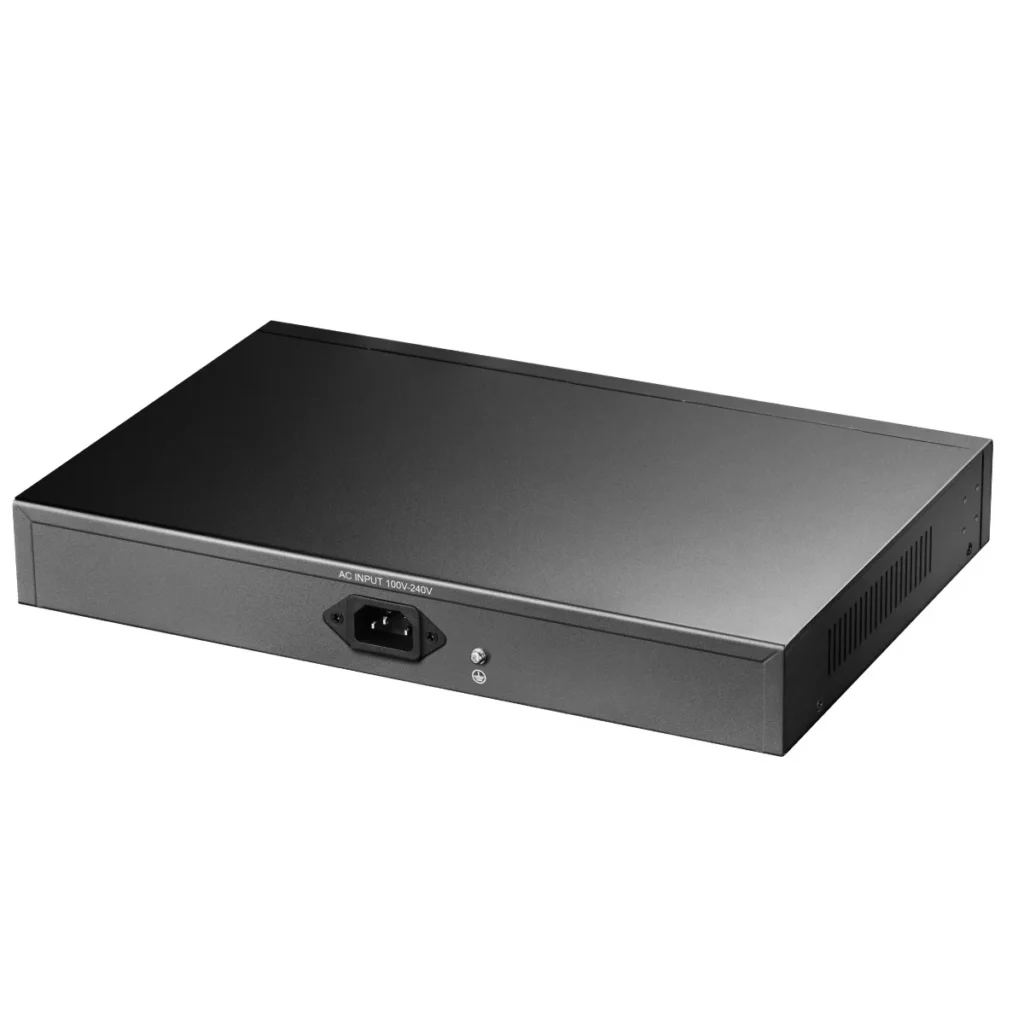

Power input	• AC100-240V 50/60Hz, Power Budget: 300 W
	• PWR :Power supply indicator (Red)
Lighting	• Powered
Un-Light	• No Power
	• PoE/RJ-45 Status indicator (Yellow)
On	• POE power supply is normal
Off	• POE not powered
	• PoE/RJ-45 StatUs indicator (Green)
On	• Link normal
Off	• Link blocked
Flashing	• Data transmitting
Operating Temperature	• -20℃ ~ 50℃;
Storage Temperature	• -40℃ ~ 80℃;
Operating Humidity	• Max 90%, non-condensing
Storage Humidity	• Max 95%, non-condensing
Working Height	• Max to 10,000 feet (3,000 meters)
Storage Height	• Max to 10,000 feet (3,000 meters)
	• Dual uplink GbE and dual SFP slots allow network expansion and long-distance surveillance
	• 24× GbE PoE Ports, 802.3at / 802.3af (30W per port)
Port	• 17-24 Supports CCTV Mode for max 250 meters transmission
	• 300-watt total power supply
	• Watchdog detects unresponsive PoE clients under VLAN mode
	• PoE Port Priority streamlines device power management
LED Indicator	• PWR :Power supply indicator (Red)
