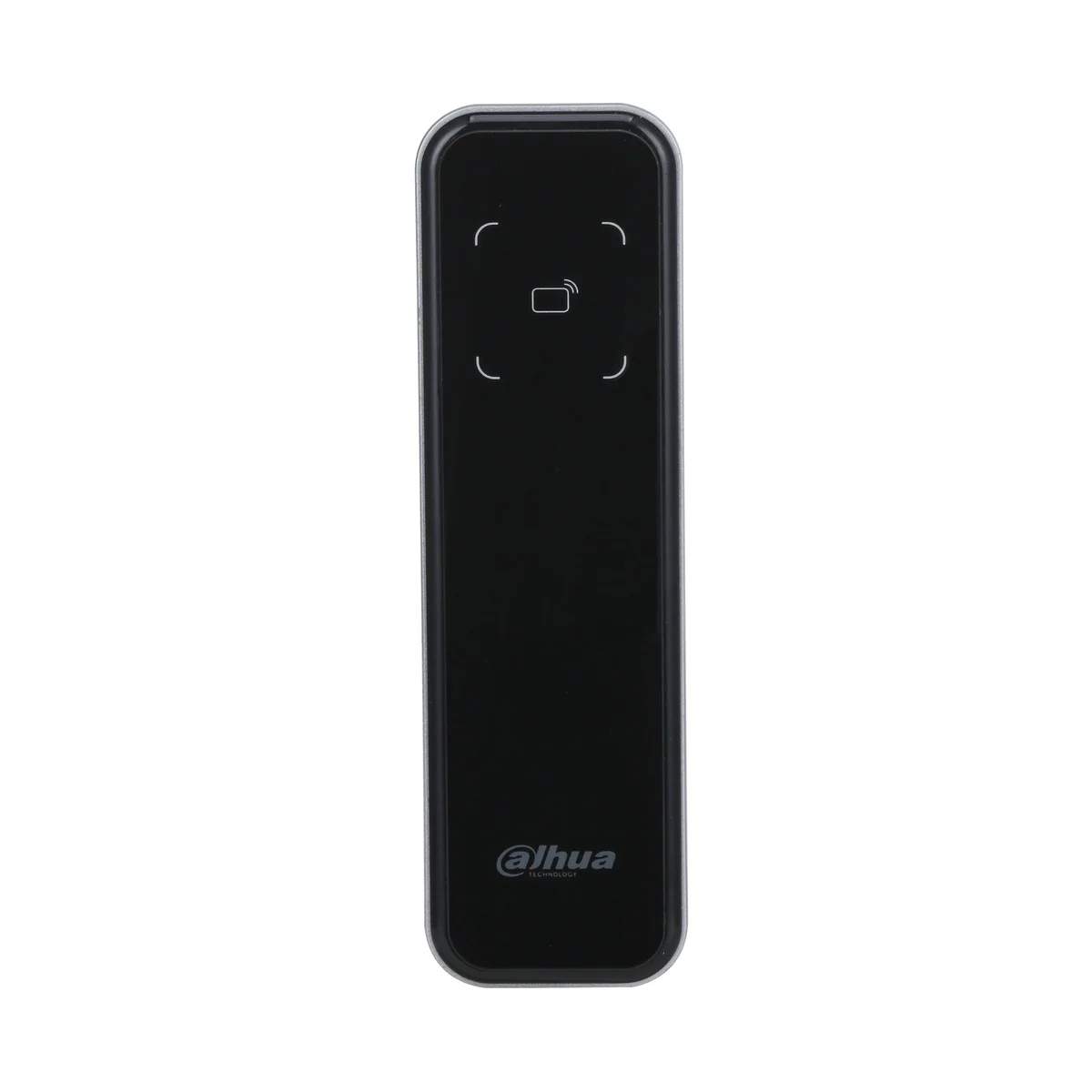

Dahua AC RFID Reader Slim Water-proof ASR2200A-D
Product Thumbnail

Dahua AC RFID Reader Slim Water-proof ASR2200A-D

€56.00

Verification Type: SmartcardCard Support: IDWater Proof Rating: IP65

Add To Wishlist Add To Compare

Product Details

  • SKU : 23680
  • Stock : Available

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

PC material, tempered glass panel and IP66, suitable for indoor and outdoor useSupport contactless recognition of ID card (Mifare card)Support card unlockSupport RS485 and Wiegand communicationSupport buzzer and indicator promptSupport anti-tampering alarmThe built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipmentAll connection ports have overcurrent and overvoltage protection

Product Type
  • • Slim Card Reader
Buzzer
  • • Yes
Casing
  • • Tempered glass/PC
Unlock Mode
  • • Card swiping
Card Type
  • • ID card
  • • Performance
Response Time
  • • 0.1 s
Card Reading Distance
  • • 0 cm–5 cm
Port
  • • RS-485
1 channel
  • • Wiegand
1 output channel
  • • Alarm
Tamper Alarm
  • • Yes
Power Supply
  • • 12V 0.5A DC
Protection
  • • IP66 (silicon sealant is needed, see the manual)
Power Consumption
  • • Standby ≤ 0.9W, working ≤ 1.7W
Product Dimensions
  • • 135 mm × 40 mm × 15 mm (L × W× H)
Operating Temperature
  • • –30°C to +70°C (–22°F to +158°F)
Operating Humidity
  • • 5%RH–95% (non-condensing)
Operating Environment
  • • Indoor; outdoor
Gross Weight
  • • 0.16 kg
Installation
  • • Surface mount
Certifications
  • • CE; FCC
  • • PC material, tempered glass panel and IP66, suitable for indoor and outdoor use
  • • Support contactless recognition of ID card (Mifare card)
  • • Support card unlock
  • • Support RS485 and Wiegand communication
  • • Support buzzer and indicator prompt
  • • Support anti-tampering alarm
  • • The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
  • • All connection ports have overcurrent and overvoltage protection
Function
  • • Performance
