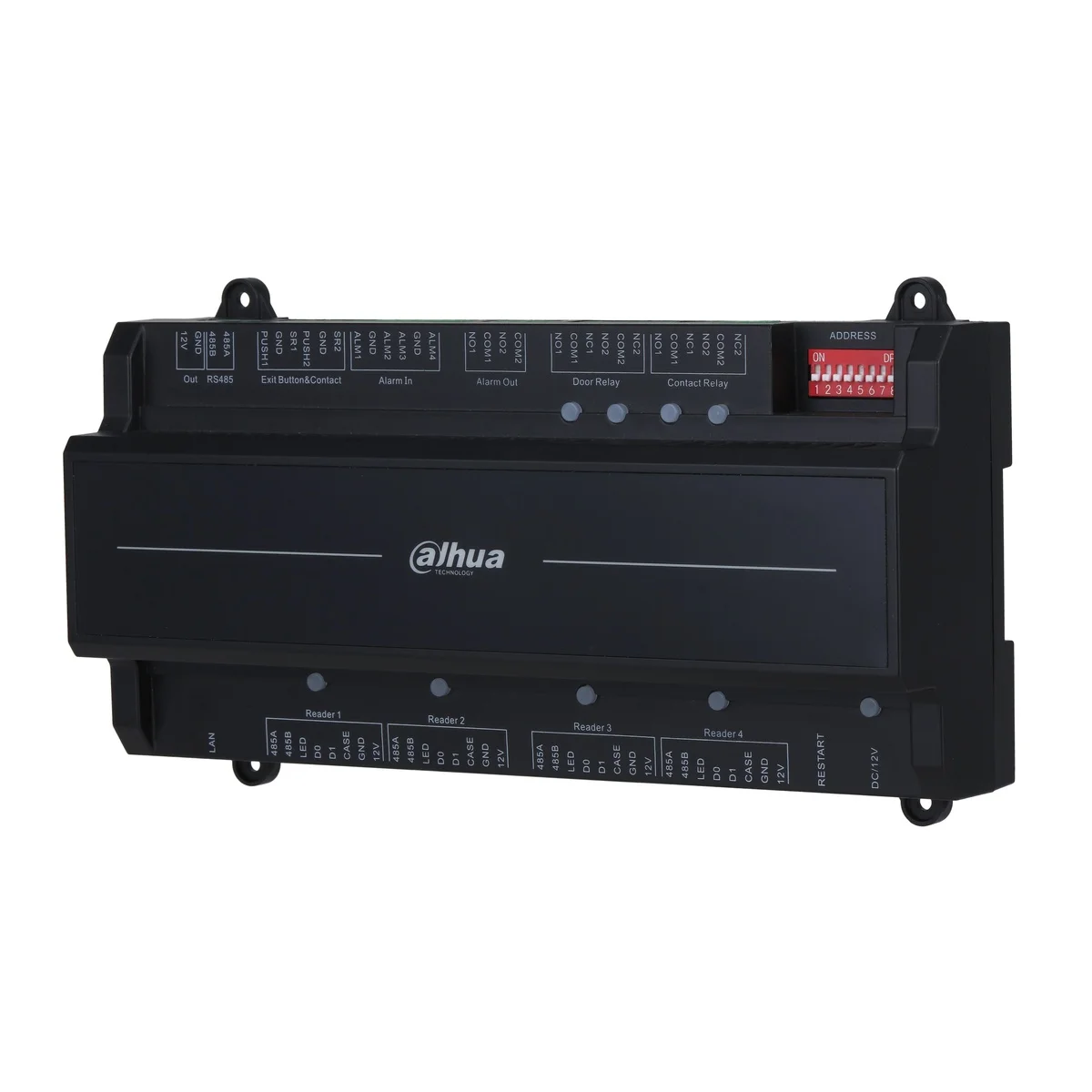

Dahua AC Two Door Two Way ASC2202B-D
Product Thumbnail

Dahua AC Two Door Two Way ASC2202B-D

€216.00

Verification Type: Fingerprint & SmartcardCard Support: Mifare & IDTcp/Ip: YesPowered by POE: YesRemote Verification: YesNetwork Update: Yes

Add To Wishlist Add To Compare

Product Details

  • SKU : 24464
  • Stock : Available

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

Support TCP/IP communicationTwo dual communication protocols: RS-485 and Wiegand (W26 and W34)Holds 100,000 users and stores 500,000 card swiping recordsSupport interlock, group combination, anti-passback, remote unlock, and moreSupport card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal card exceeding threshold alarm, and incorrect password alarmBuilt-in RTC, support manual time synchronization and auto time synchronizationSupport power-off memory protection and online upgradeSupport watchdog (a device that protects a system from software or hardware failures)Support PoE power supply

Internet Protocol
  • • IPv4; TCP; UDP
OSDP Protocol
  • • Yes
SDK
  • • Yes
Product Appearance
  • • Model B slide rail
Buzzer
  • • Yes
Casing Material
  • • PC+ABS
Unlock Mode
  • • Card/remote/password/fingerprint unlock
Period List
  • • 128
Holiday Period
  • • 128
Network Update
  • • Yes
First-Card Unlock
  • • Yes
Remote Verification
  • • Yes
Blocklist/Allowlist
  • • Yes
Peripheral Card Reader
  • • 4 RS-485 card readers or 4 Wiegand card readers
Multi-door Interlock
  • • Yes
Group Combination
  • • Card/password/fingerprint unlock
Real-Time Surveillance
  • • Yes
Multiple Authentication
  • • Yes
User (Card) Type
  • • General user, VIP user, patrol user, guest user, blocklist user, and other user
User
  • • 100,000
Fingerprint
  • • 3,000
Card
  • • 100,000
Record Capacity
  • • 500,000
RS-485 Port
  • • 5 RS-485 ports
Wiegand
  • • 4 Wiegand ports
Network
  • • One 10/100 Mbps network port
Alarm Input
  • • 4 (digital quantity)
Alarm Output
  • • 4 (relay)
Alarm Linkage
  • • Yes
Exit Button
  • • 2
Door Status Detection
  • • 2
Lock Control
  • • 2, normally open by default
Anti-Passback
  • • Yes
Tamper
  • • Yes
Duress
  • • Yes
Door Sensor Timeout
  • • Yes
Intrusion
  • • Yes
Illegal Card Exceeding Threshold
  • • Yes
Duress Fingerprint
  • • Yes
Power Supply
  • • Standard POE (an additional power supply for the door lock is needed) / DC 12V (support supplying power to the door lock)
IP Rating
  • • IP20, IK04
Power Consumption
  • • Standby 1.0W, working 13.0W (Standard PoE; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A) / Standby 0.8W, working 41.6W (DC 12V; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A; rated voltage of the door lock power supply is 12V, and the total max. rated current is 2A)
Product Dimensions
  • • 210 mm × 106 mm × 50 mm
Packaging Dimensions
  • • Packaging box: 255 mm × 166 mm × 87 mm / Protective box : 508 mm × 265 mm × 190 mm
Operating Temperature
  • • –30°C to +60°C
Operating Humidity
  • • 5%RH–90%RH (no condensation)
Operating Altitude
  • • 0 m–1300 m
Operating Environment
  • • Indoor
Gross Weight
  • • 0.6 kg
Installation
  • • Surface/guide rail mount
  • • CE/FCC/UL
  • • Support TCP/IP communication
Two dual communication protocols
  • • RS-485 and Wiegand (W26 and W34)
Holds
  • • 100,000 users and stores 500,000 card swiping records
  • • Support interlock, group combination, anti-passback, remote unlock, and more
  • • Support card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal card exceeding threshold alarm, and incorrect password alarm
  • • Built-in RTC, support manual time synchronization and auto time synchronization
  • • Support power-off memory protection and online upgrade
  • • Support watchdog (a device that protects a system from software or hardware failures)
  • • Support PoE power supply
Certification
  • • CE/FCC/UL
