Dahua NVR 32ch 2HDD 160Mbps H265 NVR4232-4KS3
Gallery Image 1
Product Thumbnail
Gallery Thumbnail 1

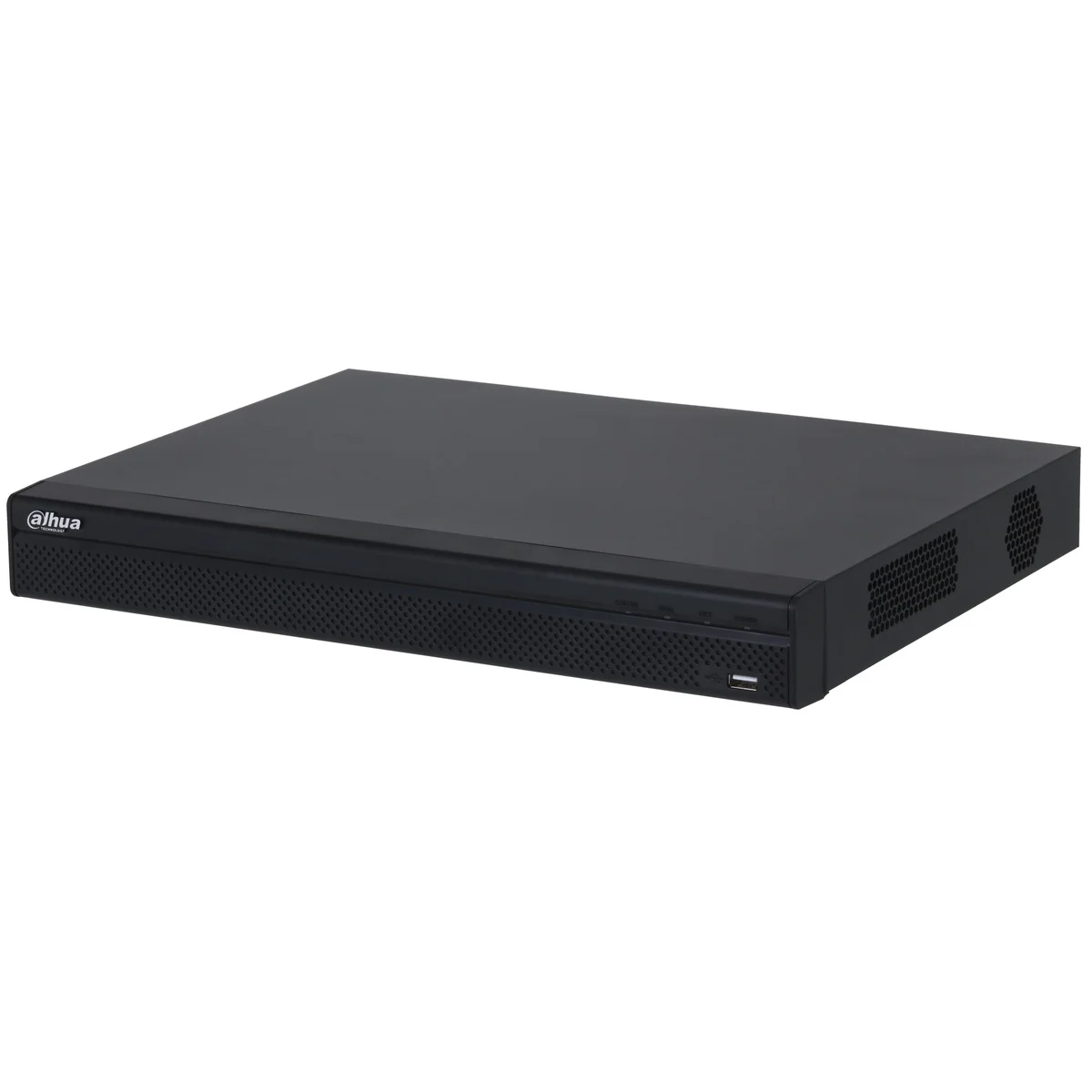

Dahua NVR 32ch 2HDD 160Mbps H265 NVR4232-4KS3

€482.00

Max Input/Record: 160Mbps/160MbpsChannels: 32Compression: Smart H.265+/H.265/ Smart H.264+/H.264HDD: 2 Disk Up to 20TBAudio: 1 Input, 1 OutputAlarm: 4 Channel In, 2 Channel Out

Add To Wishlist Add To Compare

Product Details

  • SKU : 25422
  • Stock : Available

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formatsMax. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fpsMax. 160/128/60 Mbps incoming/recording/outgoing bandwidthSupports IP cameras with a resolution up to 12 MPAI by Recorder supports 2-channel SMD PlusAI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat mapSupports EPTZ, and one-click arming and disarming

Main Processor
  • • Industrial-grade processor
Operating System
  • • Embedded Linux
Operating Interface
  • • Web, Local GUI
AI by Recorder
  • • SMD Plus
AI by Camera
  • • Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Performance of AI by Camera (Number of Channels)
  • • 6 channels
Face Attributes
  • • Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels)
  • • 6 channels
Face Recognition Performance of AI by Camera (Number of Channels)
  • • 6 channels
SMD Plus by Recorder
  • • 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera
  • • 6 channels
Access Channel
  • • 32 channels
Network Bandwidth
  • • AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing / AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution
  • • 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability
  • • AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps / AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps
Video Output
  • • 1 HDMI, 1 VGA / Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 /Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display
  • • AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 / AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16
Third-party Camera Access
  • • ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Video Compression
  • • Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
  • • G.711a; G.711u; PCM; G726
Network Protocol
  • • HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access
  • • iOS; Android
Interoperability
  • • ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser
  • • Chrome; IE; Safari; Edge; Firefox
Multi-channel Playback
  • • Up to 16 channels
Record Mode
  • • General, motion detection; intelligent; alarm
Backup Method
  • • USB device and network
Playback Mode
  • • Instant playback, general playback, event playback, tag playback, smart playback
Disk Group
  • • Yes
General Alarm
  • • Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm
  • • Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm
  • • Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage
  • • Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
Audio Input
  • • 1-channel RCA
Audio Output
  • • 1-channel RCA
Alarm Input
  • • 4 channels
Alarm Output
  • • 2 channels (1-channel 12 V 1 A output）
Disk Interface
  • • 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
USB
  • • 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI
  • • 1
VGA
  • • 1
Network Port
  • • 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Power Supply
  • • 12 VDC, 4 A
Power Consumption
  • • Total output of NVR is <10 W(without HDD)
Net Weight
  • • 1.49 kg
Gross Weight
  • • 2.77 kg
Product Dimensions
  • • 375.0 mm × 282.9 mm × 53.0 mm (W × D × H)
Packaging Dimensions
  • • 433.0 mm × 141.0 mm × 366.0 mm (W × D × H)
Operating Temperature
  • • –10 °C to +55 °C
Storage Temperature
  • • –20 °C to +60 °C
Operating Humidity
  • • 10%–93% (RH), non-condensing
Installation
  • • Rack or desktop
Certifications
  • • CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
  • • Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats
Max. decoding capability
  • • 8 × 1080p@30 fps or 2 × 8 MP@30 fps
Max.
  • • 160/128/60 Mbps incoming/recording/outgoing bandwidth
Supports IP cameras with a resolution up to
  • • 12 MP
AI by Recorder supports
  • • 2-channel SMD Plus
  • • AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map
  • • Supports EPTZ, and one-click arming and disarming
