Dahua PoE Cloud Gigabit Switch 8port +2UP 110W CS4010-8GT-110
Product Thumbnail

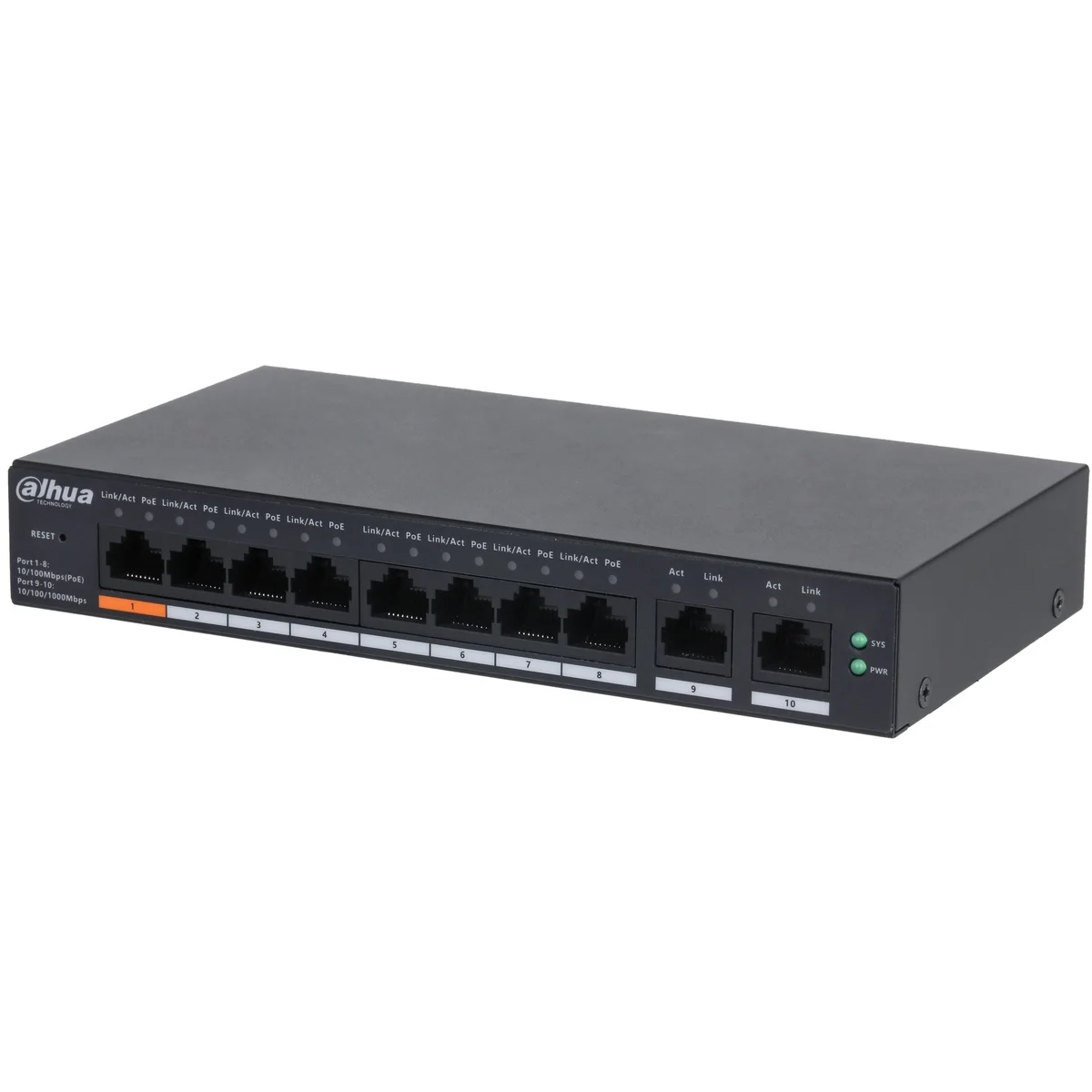

Dahua PoE Cloud Gigabit Switch 8port +2UP 110W CS4010-8GT-110

€237.00

Ethernet Speed: GigabitEthernet Ports: 10Poe Ports: 8Total PoE Power: 110WMax. Watt per Port: 90WType: Cloud ManagedHousing: MetalMounting: Desktop/WallPoE Type: 802.3af/atGigabit Uplink Ports: 2 x RJ45

Add To Wishlist Add To Compare

Product Details

  • SKU : 27292
  • Stock : Available

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standardsMeets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standardsManages PoE power consumption and PoE power on/off. Supports Intelligent PoEA wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof

Included Power Adapter
  • • Yes
PoE
  • • Yes
Ethernet Port
  • • 8
Ethernet Port Speed
  • • 10/100/1000 Mbps
Ethernet Port Uplink Speed
  • • 10/100/1000 Mbps
Description of Function Slots
  • • Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps（uplink）
Reset Button
  • • 1
Power Supply
  • • External power supply: 54 VDC, 2.22 A
Operating Temperature
  • • –10 °C to +55 °C
Operating Humidity
  • • 5%–95% (RH), non-condensing
Storage Temperature
  • • –40 °C to +70 °C
Storage Humidity
  • • 5%–95% (RH), non-condensing
Power Consumption
  • • Idling: ≤6 W; Full load: 110 W
Layer
  • • Layer 2
Management Type
  • • Yes
Smart Managed Switch
  • • Yes
MTBF
  • • 127.3 years
Switching Capacity
  • • 20 Gbps
Packet Forwarding Rate
  • • 14.88 Mpps
Packet Buffer Size
  • • 4 Mbit
Jumbo Frame
  • • 15K Byte
MAC Table Size
  • • 8K
VLAN Number
  • • 32
Communication Standard
  • • IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
PoE Protocol
  • • IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power
  • • Port 1 ≤ 90 W, Port 2-8 ≤ 30 W, total ≤ 110 W
PoE Power Consumption Management
  • • Yes
PoE Pin Assignment
  • • 1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission
  • • Yes
VLAN Function
  • • Port-based VLAN
IEEE 802.3x Flow Control
  • • Yes
DHCP Function
  • • DHCP Client
Equipment Management
  • • Web management; App management
Statics Protection
  • • Air discharge: 8 kV; Contact discharge: 6 kV
Lighting Protection
  • • Common mode: 4 kV; Differential mode: 2 kV
Net Weight
  • • 0.5 kg
Gross Weight
  • • 1.25 kg
Product Dimensions
  • • 190 mm × 106 mm × 30 mm (L × W × H)
Packaging Dimensions
  • • 256 mm × 244 mm × 87 mm (L × W × H)
Casing Material
  • • Sheet metal
Installation
  • • Desktop mount; wall mount
Certifications
  • • CE
  • • Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards
  • • Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
  • • Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
  • • A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
