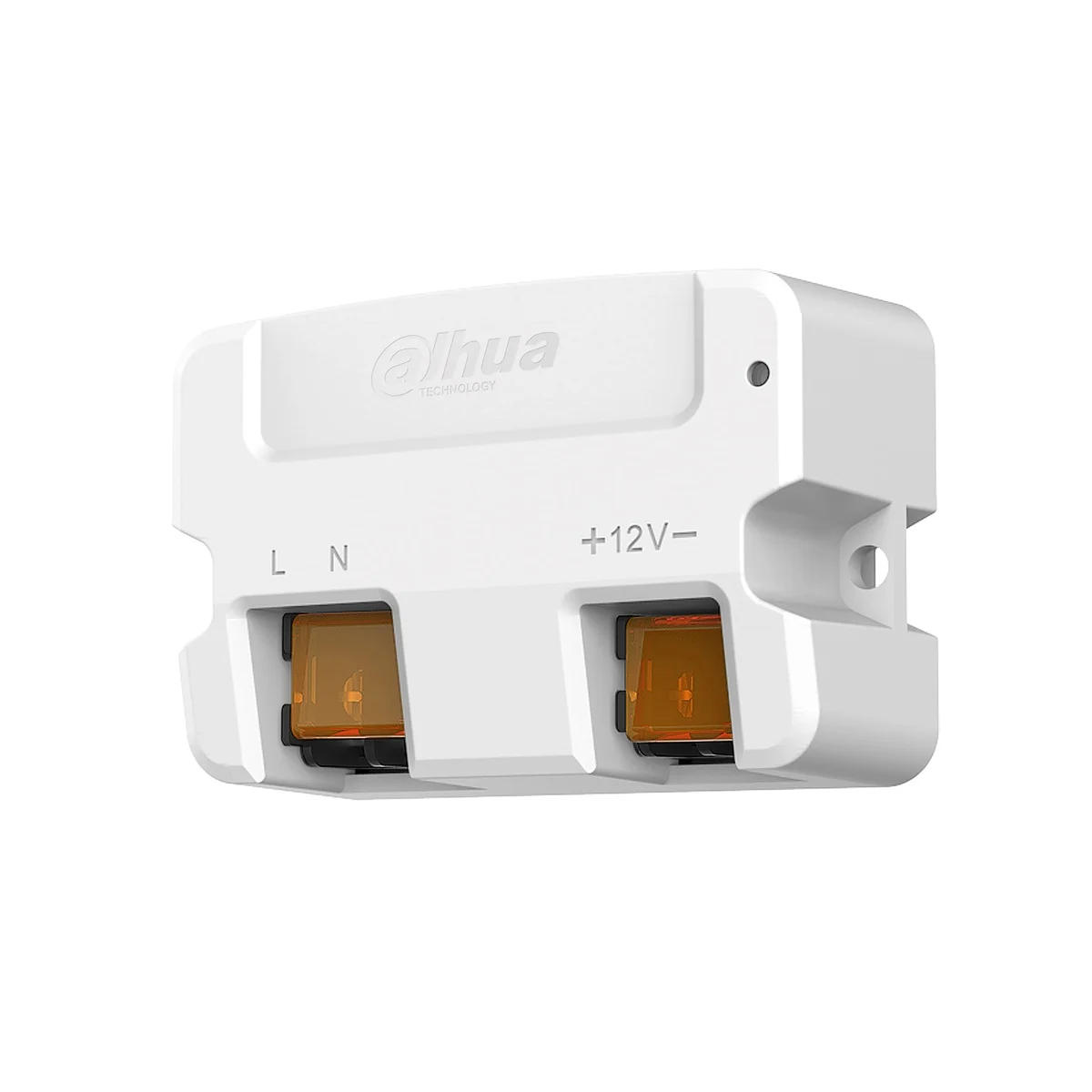

Dahua Switching Power Supply 240V to DC12V 1.5A PFM320D
Product Thumbnail

Dahua Switching Power Supply 240V to DC12V 1.5A PFM320D

€13.00

Type: CompactVoltage: 12VAmpers: 1.5A

Add To Wishlist Add To Compare

Product Details

  • SKU : 20471
  • Stock : Available

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

Easy installationSupport working with indicator lightSupport -30 ~+70 degrees wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperaturesAccurate overcurrent, overvoltage protection

Rated input
  • • AC100~240V, 50/60Hz, 0.6A
Output voltage
  • • DC12V (+7%, -3%)
Output current
  • • Max. 1.5A (+70?)
Protection
  • • Surge protection, over temperature protection, over current, voltage load protection / ESD: EN61000-4-2 / +/-6kV Contact; +/-8kV Air / Surge: EN61000-4-5 / Combination Wave: Common Mode ±4KV(12 ohms) / Differential Mode ±2kV(2 ohms)
Working temperature
  • • -30?~+70?(-22?~+158?)
Working humidity
  • • 5%~95% RH
Weight
  • • 95g(0.21lb)
Dimension(LxWxH)
  • • 77.3mmx51.9mmx30.0mm(3.04”x2.04”x1.18“)
Installation
  • • Plane installation, can be installed in junction boxes and wall mount brackets
Color
  • • White
Input plug
  • • 2-pin plug(L/N)
Output plug
  • • 2-pin plug(+12V-)
Certification
  • • CE, FCC
  • • Easy installation
  • • Support working with indicator light
  • • Support -30 ~+70 degrees wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
  • • Accurate overcurrent, overvoltage protection
