Lenkeng HDMI Matrix over IP 4K POE, APP, VideoWall, MultiView 2×4 (iMCS-IM02-2TX/4RX)
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Gallery Image 7
Gallery Image 8
Product Thumbnail
Gallery Thumbnail 1
Gallery Thumbnail 2
Gallery Thumbnail 3
Gallery Thumbnail 4
Gallery Thumbnail 5
Gallery Thumbnail 6
Gallery Thumbnail 7
Gallery Thumbnail 8

Lenkeng HDMI Matrix over IP 4K POE, APP, VideoWall, MultiView 2×4 (iMCS-IM02-2TX/4RX)

€1,097.00

Add To Wishlist Add To Compare

Product Details

  • SKU : 28622
  • Stock : Out of Stock

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.Supports up to 3840 x 2160@60Hz resolution, backwards compatible.Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.Supports one-to-one or many-to-many connections through the gigabit switch.Supports RS-232 passthrough and control.The transmitter supports HDMI loop out.Supports bi-directional IR pass-back(20～60KHz);Supports IR learning remote and control device by APP.Supports I/O interface control.Supports POE(Power over Ethernet).Creating multi-screen splicing video wall through switch and controlled by APP.Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration.

Max HDMI Cable Length (Direct Connection)
  • • ≤5m (standard limitation)
Extended Transmission via CAT5e/CAT6
  • • CAT5: Up to 80m CAT5e: Up to 100m CAT6: Up to 120m
Max HDMI Bandwidth
  • • 18Gbps (HDMI 2.0)
Supported Resolutions
  • • 4K@60Hz (3840×2160) 4K@30Hz (4096×2160) 1440p@60Hz (2560×1440) 1080p@60Hz 720p@60Hz
HDCP Support
  • • HDCP 1.4 & 2.2 (for DRM-protected content like Netflix, Blu-ray)
4K@60Hz
  • • 130~200ms (high delay, not ideal for gaming)
1080p@60Hz
  • • 70~130ms (better, but still laggy for fast-paced games)
HDMI Audio Output
  • • LPCM 2.0 (Stereo only, no Dolby/DTS surround)
IR Receiving Range
  • • ≤5m
IR Frequency
  • • 20kHz~60kHz
Default Baud Rate
  • • 115200
Supported Rates
  • • 2400, 4800, 9600, 19200, 38400, 57600, 115200
Input Power
  • • DC 5V/2A (for both TX & RX)
Power Consumption
  • • TX (Transmitter): ≤5.5W RX (Receiver): ≤3.5W
Housing Material
  • • Iron (durable but heavy)
Weight
  • • TX: 523g RX: 514g
Dimensions
  • • 191.0(L) × 96.0(W) × 25.0(H) mm
Operating Temperature
  • • -20°C ~ 60°C
Storage Temperature
  • • -30°C ~ 70°C
Humidity Tolerance
  • • 0~90% RH (non-condensing)
ESD Protection
  • • Contact discharge: ±4KV (IEC61000-4-2 Level 2) Air discharge: ±8KV (IEC61000-4-2 Level 3)
  • • Surge & Lightning Protection (for stable signal transmission)
  • • Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.
  • • Supports up to 3840 x 2160@60Hz resolution, backwards compatible.
  • • Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.
  • • Supports one-to-one or many-to-many connections through the gigabit switch.
  • • Supports RS-232 passthrough and control.
  • • The transmitter supports HDMI loop out.
  • • Supports bi-directional IR pass-back(20～60KHz);
  • • Supports IR learning remote and control device by APP.
  • • Supports I/O interface control.
  • • Supports POE(Power over Ethernet).

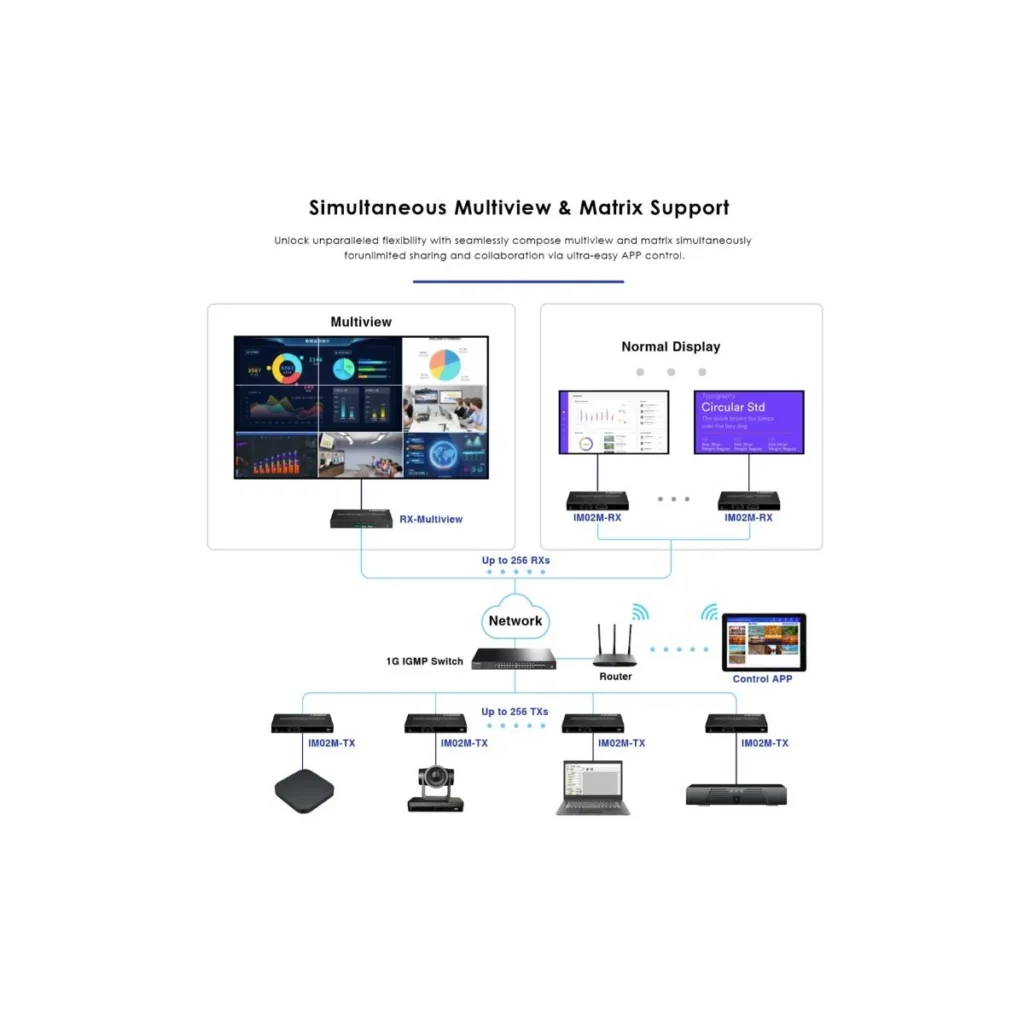

  • • Creating multi-screen splicing video wall through switch and controlled by APP.
Supports
  • • 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration.
Protection Features
  • • Surge & Lightning Protection (for stable signal transmission)
