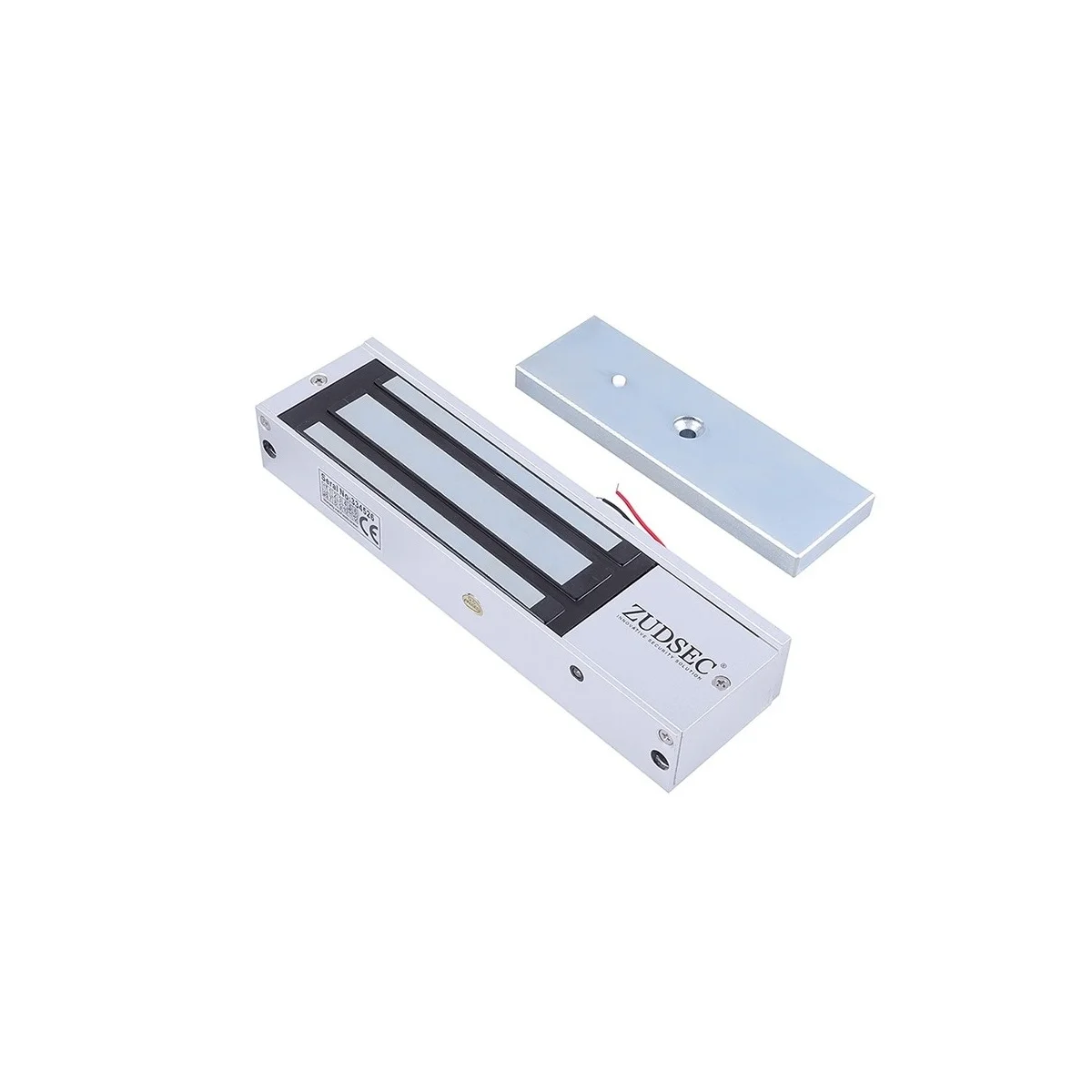

Zudsec Lock Electromagnetic ZDL-500ST
Product Thumbnail

Zudsec Lock Electromagnetic ZDL-500ST

€128.00

Lock Type: ElectromagneticProduct Type: Lock

Add To Wishlist Add To Compare

Product Details

  • SKU : 24687
  • Stock : Available

Guaranteed Safe Checkout

Hotline Order:
Mon - Fri: 07:00 am - 05:30 pm
(+357) 22 261 615

NC lock = Normally ClosedNo power →  unlockedPower ON →  locksNC = Needs power to stay closedInput voltage：DC12VHolding Force: 500kg(1200Lbs)With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions;  NO /NC /COM, NO output when locking and unlocking the NC outputWith adjustable delay locked 0-20 secondsBi-color LED to achieve opening and closing status displayFail-safe type (Power to lock): Power-on to lock, Power-off to open).Suitable for: Wooden door , Glass door ,Metal door , Fireproof doorFinishes for Shell: Anodized aluninumFinishes for Magnetic: ZincFinishes for Armature: Zinc

Voltage
  • • 12VDC+10%
Power consumption
  • • 12V/500mA
  • • Signal output:NO /NC /COM, NO output when locking and unlocking the NC output
  • • Red indicates the door is unlock,Green indicates the door is lock
  • • Delay time:0~9 seconds
Surface Temp
  • • ≤+20°C
Operating Temp
  • • 10~+55°C(14-131F)
Suitable Humidity
  • • 0~90%
  • • Product dimension：265×73×41mm(Body), 185×62×13mm(Magnet)
Packing size
  • • 28.5*8*7.5cm, Weight: 4.3 Kgs
Input
  • • voltage：DC12V
Holding Force
  • • 500kg(1200Lbs)
  • • With door state detection signal output function, for applications that require real-time monitoring of entrance door switch state occasions; NO /NC /COM, NO output when locking and unlocking the NC output
With adjustable delay locked
  • • 0-20 seconds
  • • Bi-color LED to achieve opening and closing status display
Fail-safe type (Power to lock)
  • • Power-on to lock, Power-off to open).
Suitable for
  • • Wooden door , Glass door ,Metal door , Fireproof door
Finishes for Shell
  • • Anodized aluninum
Finishes for Magnetic
  • • Zinc
Finishes for Armature
  • • Zinc
