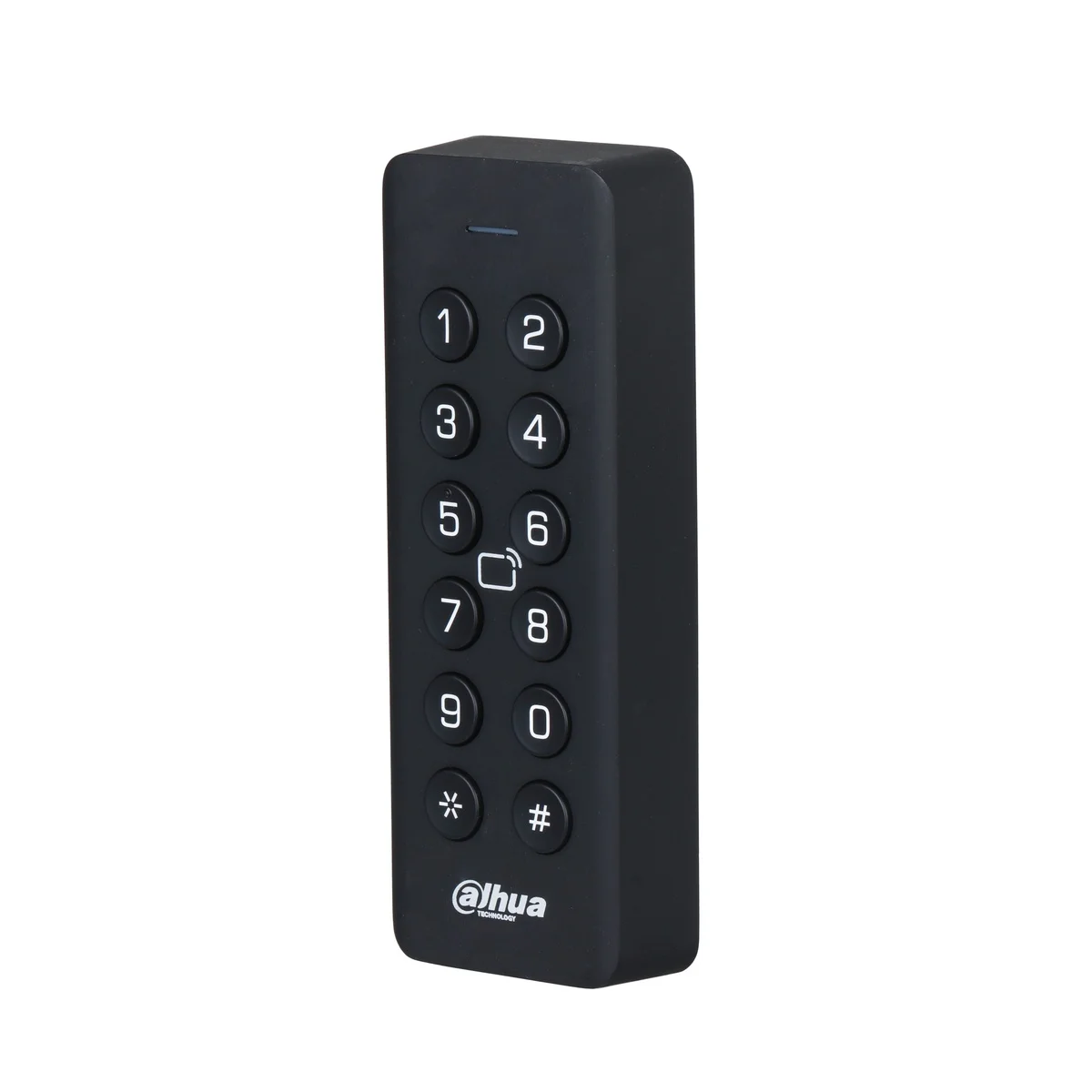

Dahua AC RFID Reader Mifare Cards with Keypad ASR2101H

€52.00

Verification Type: SmartcardCard Support: MifareKeypad: YesWater Proof Rating: IP66

Add To Wishlist Add To Compare

Product Details

SKU : 24706
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

Card unlock and password unlockRS-485 and Wiegand 34 communication (Wiegand 26 can be configured)Prompts using the buzzer and indicator lightTamper alarmWatchdog monitors and controls the device when it behavesAll the connection ports have overcurrent and overvoltage protectionIP66 rated

OSDP Protocol	• Yes
Button Type	• Mechanical
Product Type	• Card reader
Buzzer	• Yes
Backlight	• Yes
Casing Material	• PC + ABS
Unlock Mode	• Card, password
Card Type	• IC card
Response Time	• 0.1 s
Card Reading Distance	• 0 cm–8 cm
RS-485	• 1
Wiegand	• 1 channel output
Tamper Alarm	• Yes
Power Supply	• 12 VDC, 0.5 A
Protection	• IP66
Power Consumption	• ≤ 0.48 W (standby), ≤ 1.2 W (working)
Product Dimensions	• 127 mm × 46 mm × 20 mm
Packaging Dimensions	• 139 mm × 73 mm × 48 mm
Operating Temperature	• –30 °C to +70 °C
Operating Humidity	• ≤ 95% (RH)
Operating Environment	• Outdoor
Gross Weight	• 104 g
Installation	• Surface Mount
	• Card unlock and password unlock
	• RS-485 and Wiegand 34 communication (Wiegand 26 can be configured)
	• Prompts using the buzzer and indicator light
	• Tamper alarm
	• Watchdog monitors and controls the device when it behaves
	• All the connection ports have overcurrent and overvoltage protection
	• IP66 rated
