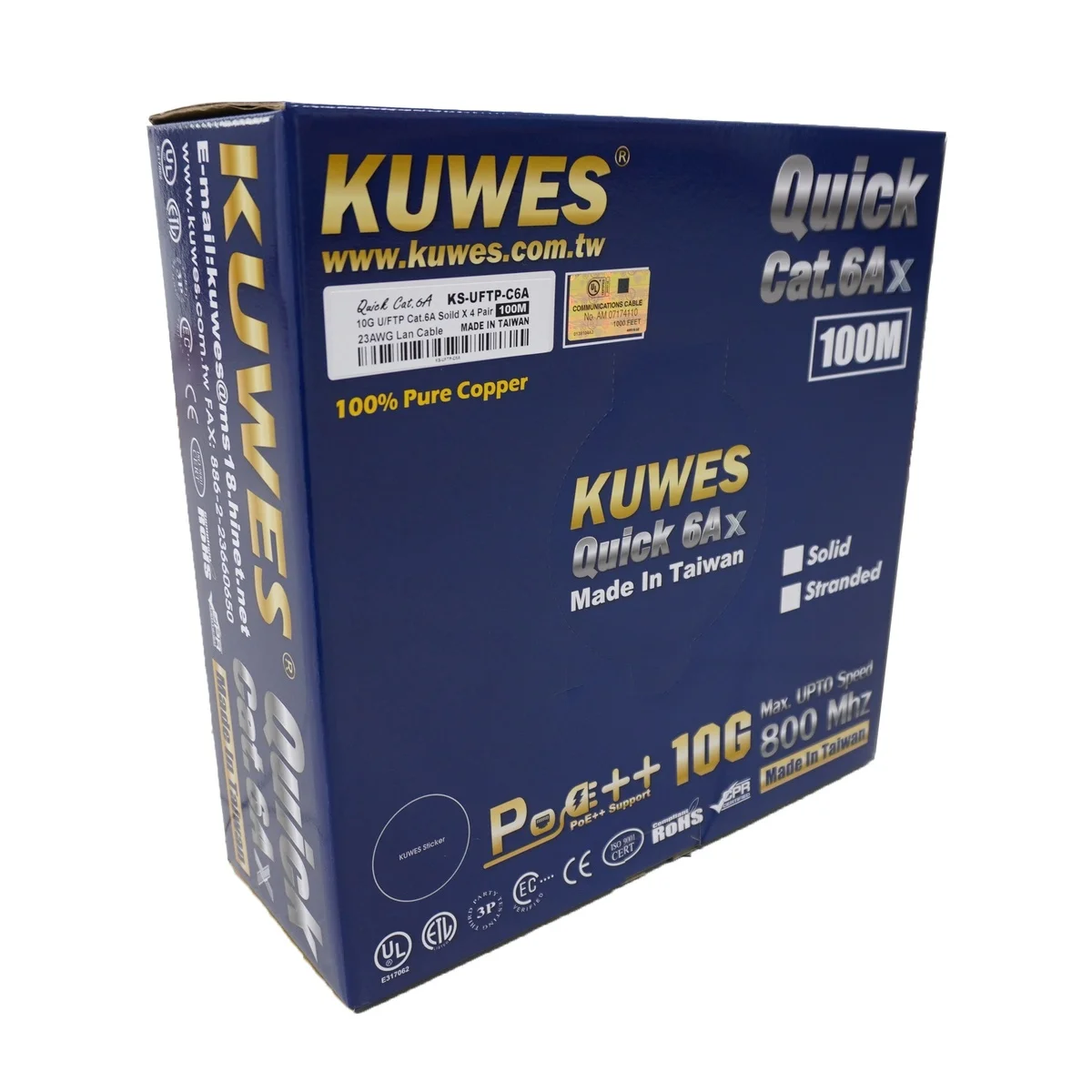

Kuwes CAT6A FTP Pure Copper Indoor 100m Grey

€157.00

Type: Cat6aCable Type: FTPConductor: Pure CopperEnvironment: IndoorLength: 100mColour: Grey

Add To Wishlist Add To Compare

Product Details

SKU : 25985
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

Conductor:Solid Bare Copper (1 x AWG23)Insulation :HDPEMin. Avg. Thickness: 0.45 mm;Min. Thickness: 0.38 mmColor Code:Pair 1: Blue & WhitePair 2: Orange & WhitePair 3: Green & WhitePair 4: Brown & WhiteShield:Aluminum-Mylar tape and Drain wire(tinned copper conductor)Jacket:75°C PVC CompoundMin. Avg. Thickness: 0.585 mm;Min. Thickness: 0.458 mmApproximate O.D.: 7.8 mm +/- 0.3mmElectric Requirements:(Cable length: 100M)Characteristic Impedance(Zo): 85～115Ω (1～500 MHz)DC. Resistance Capacitance Unbalance: 3%Pair-to-Ground Capacitance Unbalance: 330 pF/100M MaxConductor Resistance: 7.32Ω/ 100M 20°C MaxMutual Capacitance: 5600 pF/100m MaxSpark Test:Outer Jacket: 2.5KV Insulation: 1.75KVDielectric Strength: 1.5KV AC/2secsNominal Velocity of Propagation (NVP): 74 %Temperature Range:Installation Temperature 0 to 50°CStorage Temperature -20 to 70°COperation Temperature -10 to 60°C

	• HDPE
Min. Avg. Thickness	• 0.45 mm;
Min. Thickness	• 0.38 mm
Pair 1	• Blue & White
Pair 2	• Orange & White
Pair 3	• Green & White
Pair 4	• Brown & White
	• 75°C PVC Compound
Min. Avg. Thickness	• 0.585 mm;
Min. Thickness	• 0.458 mm
Approximate O.D.	• 7.8 mm +/- 0.3mm
Characteristic Impedance(Zo)	• 85～115Î© (1～500 MHz)
DC. Resistance Capacitance Unbalance	• 3%
Pair-to-Ground Capacitance Unbalance	• 330 pF/100M Max
Conductor Resistance	• 7.32Î©/ 100M 20°C Max
Mutual Capacitance	• 5600 pF/100m Max
Nominal Velocity of Propagation (NVP)	• 74 %
	• Installation Temperature 0 to 50°C
	• Storage Temperature -20 to 70°C
	• Operation Temperature -10 to 60°C

Datasheet
