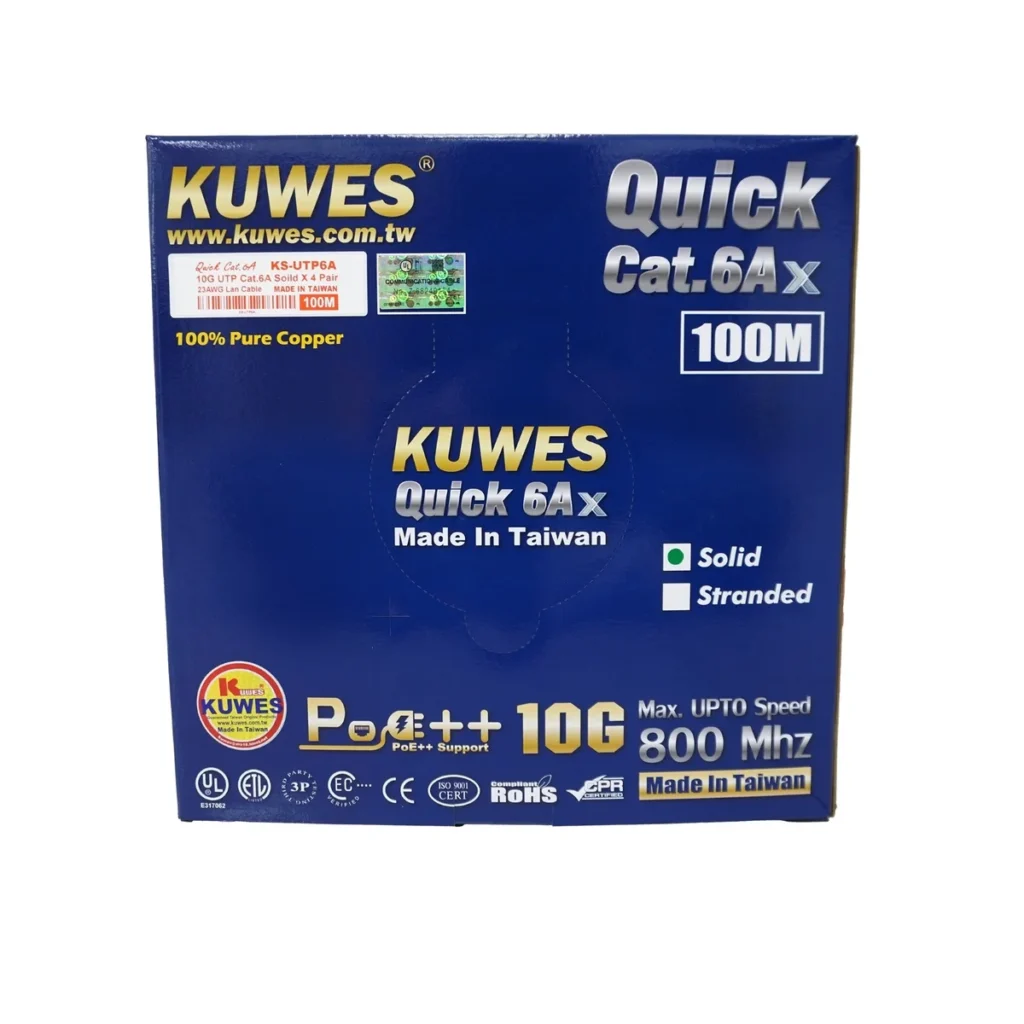

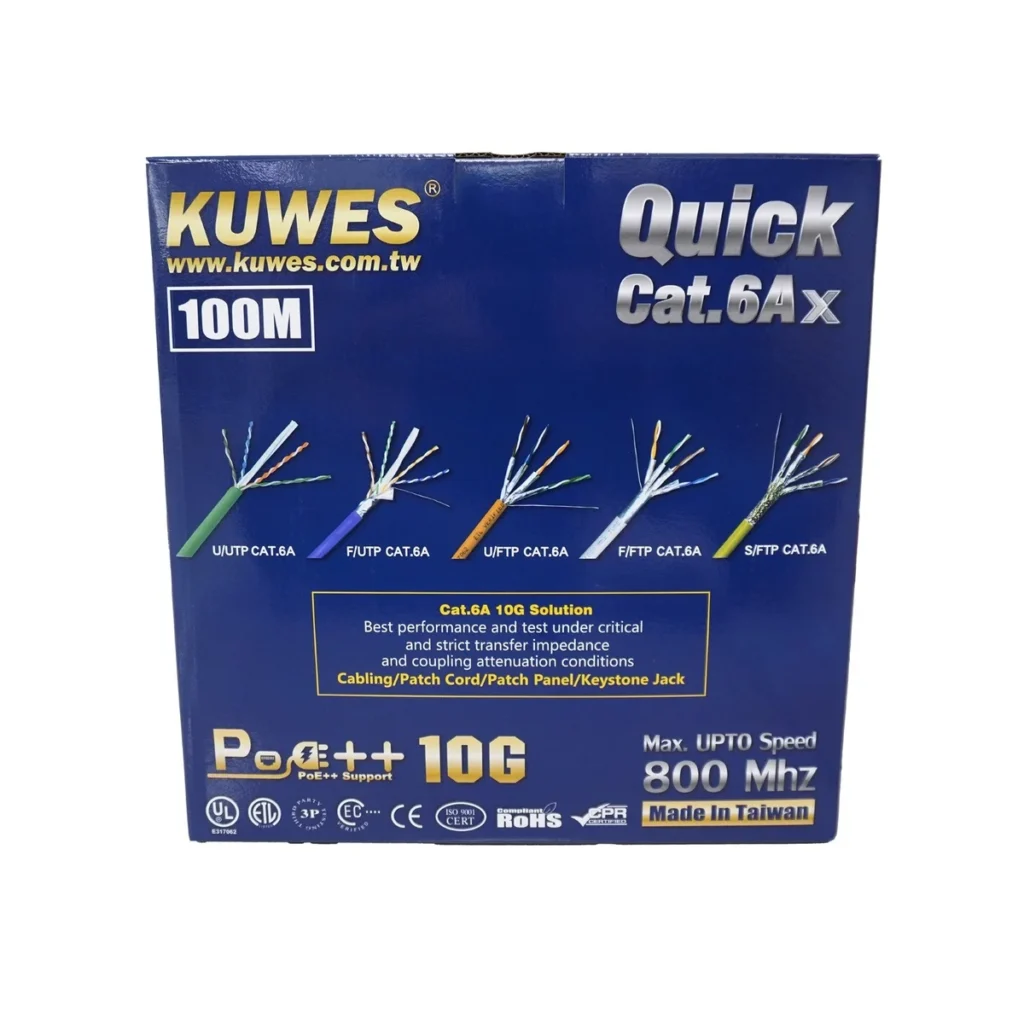

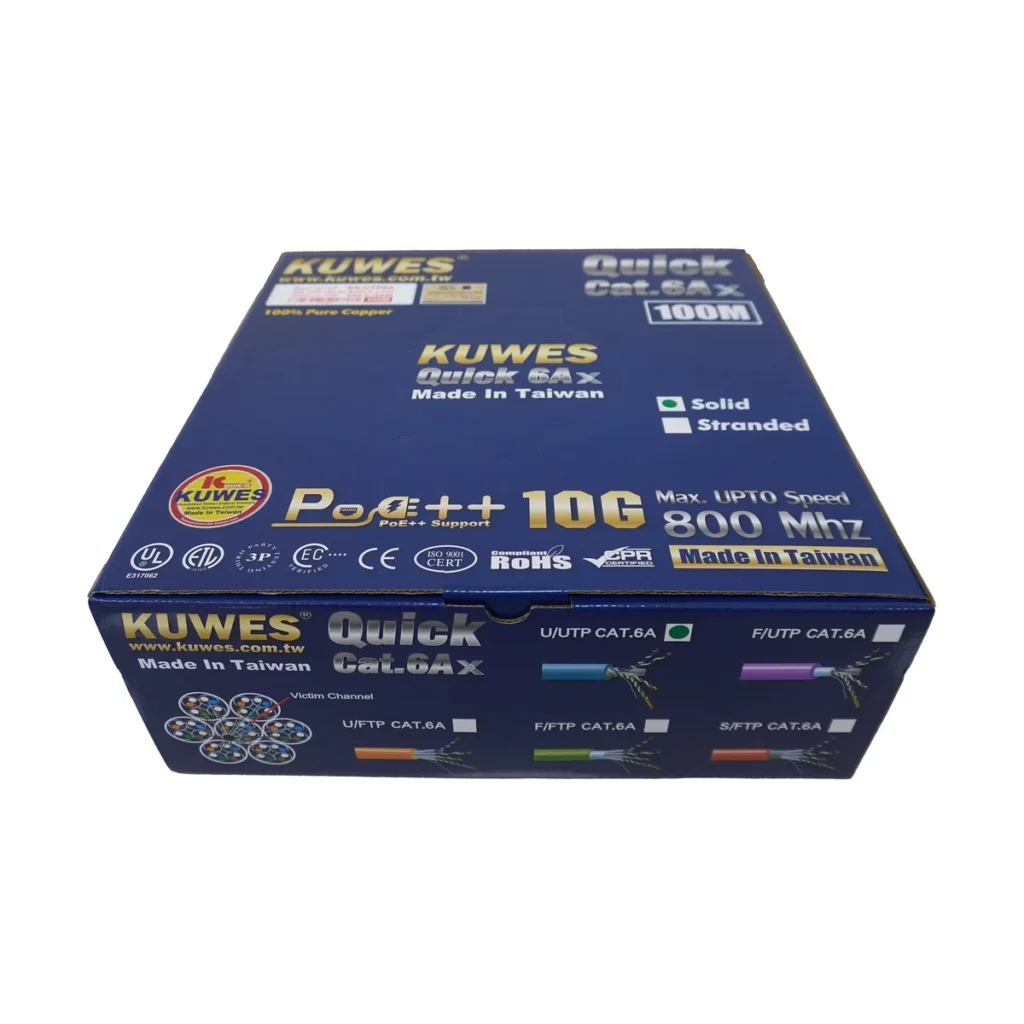

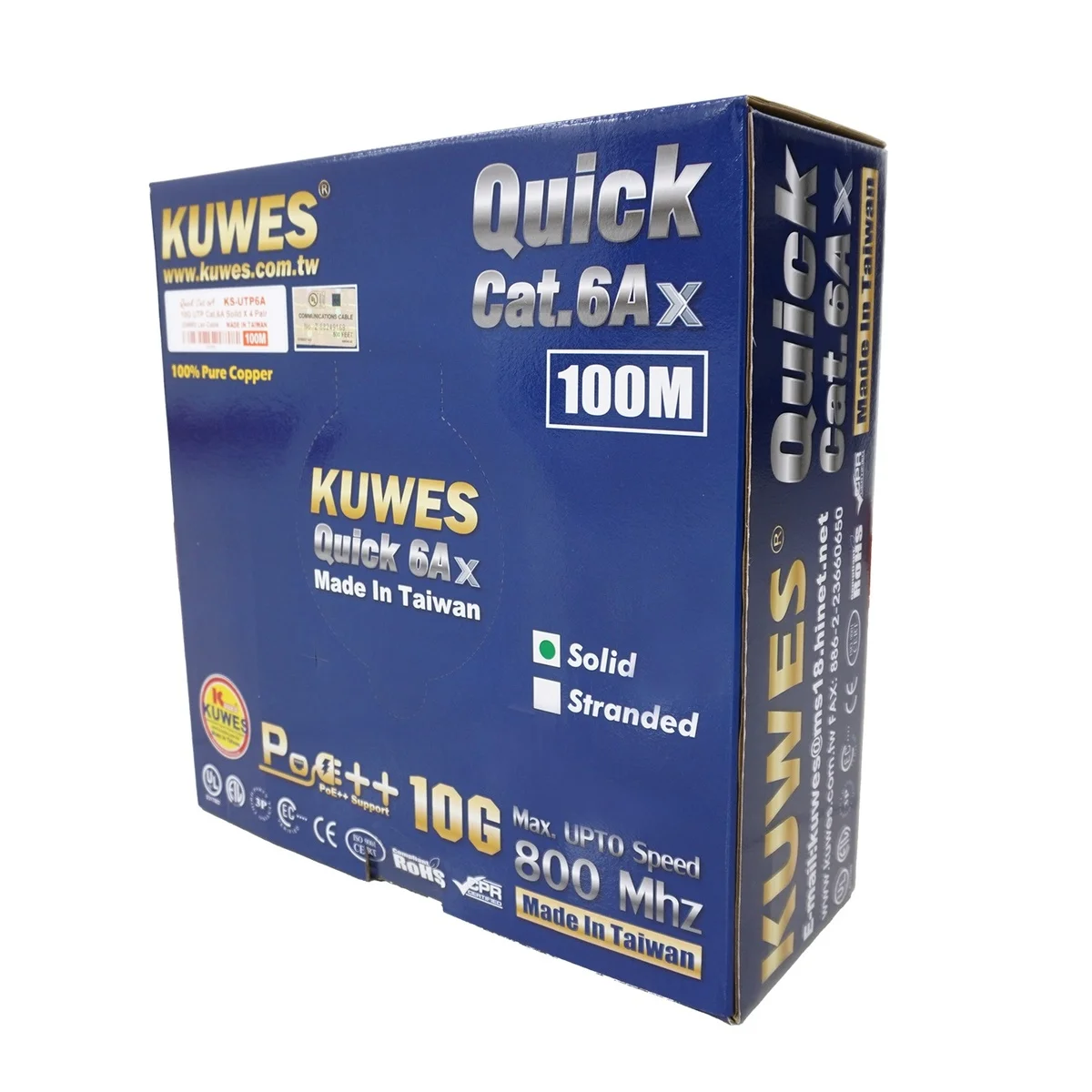

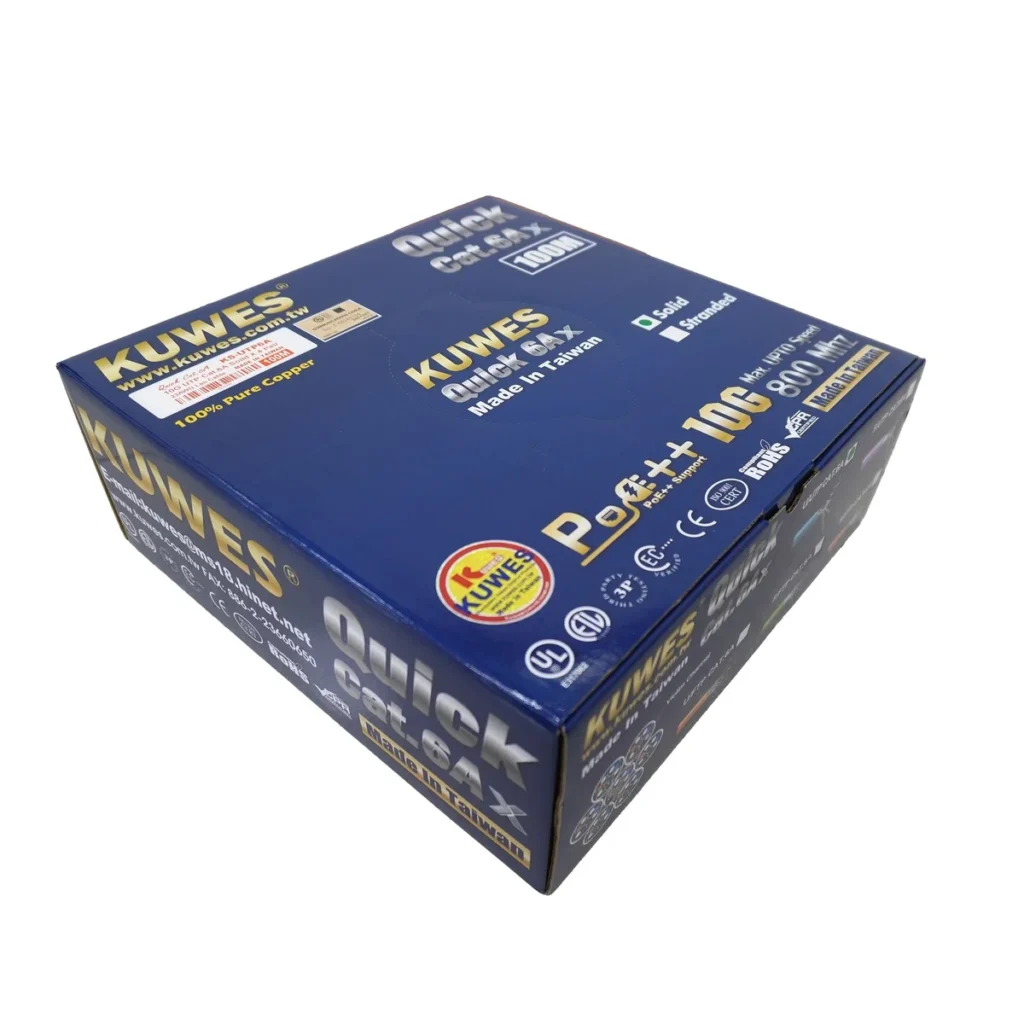

Kuwes CAT6A UTP Pure Copper Indoor 100m Grey

€117.00

Type: Cat6aCable Type: UTPConductor: Pure CopperEnvironment: IndoorLength: 100mColour: Grey

Add To Wishlist Add To Compare

Product Details

SKU : 25984
Stock : Available

Guaranteed Safe Checkout

Hotline Order:

Mon - Fri: 07:00 am - 05:30 pm

(+357) 22 261 615

Conductor:Material / Size Bare copper / 23AWGInsulation:HDPEMin. Avg. Thickness: 0.208 mm;Min. Thickness: 0.195 mmColor Code:Pair 1: Blue & White/Blue;Pair 2: Orange & White/OrangePair 3: Green & White/Green;Pair 4: Brown & White/BrownJacket:75°C PVC CompoundMin. Avg. Thickness: 0.685 mm;Min. Thickness: 0.558 mmApproximate O.D.: 7.8 mm +/- 0.3mmElectric Requirements:(Cable length: 100M)Characteristic Impedance(Zo): 85～115Ω (1～800 MHz)DC. Resistance Capacitance Unbalance: 5%Pair-to-Ground Capacitance Unbalance: 330 pF/100M MaxConductor Resistance: 7.32Ω/ 100M 20°C MaxMutual Capacitance: 5600 pF/100m MaxSpark Test:Outer Jacket: 2.5KV,Insulation: 1.75KV,Dielectric Strength: 1.5KV AC/2secsNominal Velocity of Propagation (NVP): 68 %Temperature Range :Installation Temperature 0 to 50°CStorage Temperature -20 to 70°COperation Temperature -10 to 60°C

	• HDPE
Min. Avg. Thickness	• 0.208 mm;
Min. Thickness	• 0.195 mm
Pair 1	• Blue & White/Blue;
Pair 2	• Orange & White/Orange
Pair 3	• Green & White/Green;
Pair 4	• Brown & White/Brown
	• 75°C PVC Compound
Min. Avg. Thickness	• 0.685 mm;
Min. Thickness	• 0.558 mm
Approximate O.D.	• 7.8 mm +/- 0.3mm
Characteristic Impedance(Zo)	• 85～115Î© (1～800 MHz)
DC. Resistance Capacitance Unbalance	• 5%
Pair-to-Ground Capacitance Unbalance	• 330 pF/100M Max
Conductor Resistance	• 7.32Î©/ 100M 20°C Max
Mutual Capacitance	• 5600 pF/100m Max
Spark Test	• Outer Jacket: 2.5KV , Insulation: 1.75KV, Dielectric Strength: 1.5KV AC/2secs
Nominal Velocity of Propagation (NVP)	• 68 %
	• Installation Temperature 0 to 50°C
	• Storage Temperature -20 to 70°C
	• Operation Temperature -10 to 60°C

Datasheet
